PRODUCTS

FIBER TO THE ANTENNA PRODUCTS

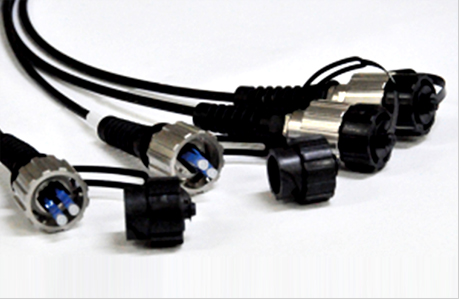

HARDENED PATCH CABLE

For data transmission to the antenna(RRH) with fiber optic cable, the connecter mated at the outside so it provide great environmental performance


USER GUIDE

USER GUIDE

PRODUCT DETAILS

PRODUCT DESCRIPTION SPECIFICATION
HOPC-SM(A2/2C)-LZ-30-LA-LA-0000(Length)-XXX(Vendor) Hardened OPC Singlemode(G.657.A2), 2Core LSZH, 3.0mm, LC/APC to LC/APC
HOPC-SM(A2/2C)-LZ-50-LU-LU-0000(Length)-XXX(Vendor) Hardened OPC Singlemode(G.657.A2), 2Core LSZH, 5.0mm, LC/UPC to LC/UPC

PRODUCT

HOPC-SM(A2/2C)-LZ-30-LA-LA-0000(Length)-XXX(Vendor)

DESCRIPTION

Hardened OPC Singlemode(G.657.A2), 2Core LSZH, 3.0mm, LC/APC to LC/APC

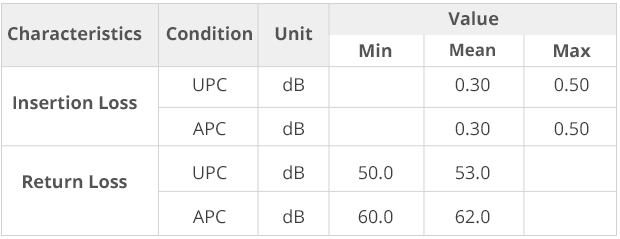

SPECIFICATION

PRODUCT

HOPC-SM(A2/2C)-LZ-50-LU-LU-0000(Length)-XXX(Vendor)

DESCRIPTION

Hardened OPC Singlemode(G.657.A2), 2Core LSZH, 5.0mm, LC/UPC to LC/UPC

SPECIFICATION

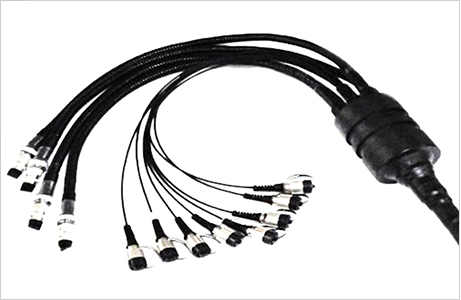

HYBRID TRUNK CABLE

Hybrid cable for data and power transmission to the antenna(RRH) is terminated with fiber optic connector and power connecter to the plug-and play application


USER GUIDE

USER GUIDE

PRODUCT DETAILS

PRODUCT DESCRIPTION SPECIFICATION
HTC-TE(A2/6C)-PW(10A/6CN)-LA-0000(Length)-XXX(Connector Vendor) Hybrid Trunk Cable, Singlemode(G.657.A2)x6ore/ 10AWGx6conductor, LC/APC connector
HTC-TE(A1/8C)-PW(8A/8CN)-LA-0000(Length)-XXX(Connector Vendor) Hybrid Trunk Cable, Singlemode(G.657.A1)x8core/ 8AWGx8conductor, LC/APC connector

PRODUCT

HTC-TE(A2/6C)-PW(10A/6CN)-LA-0000(Length)-XXX(Connector Vendor)

DESCRIPTION

Hybrid Trunk Cable, Singlemode(G.657.A2)x6ore/ 10AWGx6conductor, LC/APC connector

SPECIFICATION

PRODUCT

HTC-TE(A1/8C)-PW(8A/8CN)-LA-0000(Length)-XXX(Connector Vendor)

DESCRIPTION

Hybrid Trunk Cable, Singlemode(G.657.A1)x8core/ 8AWGx8conductor, LC/APC connector

SPECIFICATION
