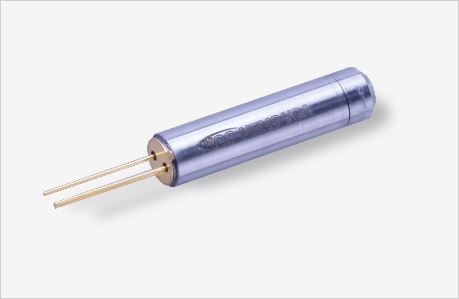

MEMS VOA

Description

KOC MEMS Variable Optical Attenuator is based on a micro-electro-mechanical system featuring compact design, easy direct drive, and excellent optical performance. The MEMS VOAs are used for distributed power equalization within ROADMs, MUX/DEMUX, Band Equalizers, Channel Equalizers, Optical Cross-Connects, Line Cards and Transponders. MEMS VOAs can be applied for all optical fields requiring input power adjustments of optical signals.


USER GUIDE

USER GUIDE

PRODUCT DETAILS

PRODUCT DESCRIPTION SPECIFICATION

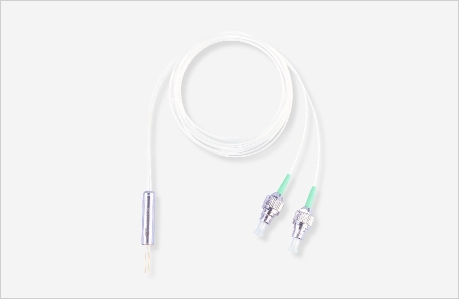

K-MVOA-B-C-30-S-10-F1 MEMS VOA, C-band30: <30dB @5V,Single Mode,
Length: 1.0m,Connector: F1 (FC/APC)
K-MVOA-B-L-35-S-10-S1 MEMS VOA, L-band35: <35dB @5V,Single Mode,
Length: 1.0m,Connector: S1 (SC/APC)
K-MVOA-B-CL-40-M-05-A-L1 MEMS VOA, C-L band40: <40dB @5V,Multi Mode,
Length: 0.5m,Connector: L1 (LC/APC)

PRODUCT

K-MVOA-B-C-30-S-10-F1

DESCRIPTION

MEMS VOA, C-band30: <30dB @5V,Single Mode,
Length: 1.0m,Connector: F1 (FC/APC)

SPECIFICATION

PRODUCT

K-MVOA-B-L-35-S-10-S1

DESCRIPTION

MEMS VOA, L-band35: <35dB @5V,Single Mode,
Length: 1.0m,Connector: S1 (SC/APC)

SPECIFICATION

PRODUCT

K-MVOA-B-CL-40-M-05-A-L1

DESCRIPTION

MEMS VOA, C-L band40: <40dB @5V,Multi Mode,
Length: 0.5m,Connector: L1 (LC/APC)<40dB @5V

SPECIFICATION
