PRODUCTS

MEMS SCANNER

1 AXIS TYPE

A MEMS Scanner is an optical device used to direct incident light in a desired direction. KOC¡¯s 1-D MEMS scanners can modulate reflected light in a single axis. The KOC¡¯s 1-D MEMS scanners feature fast & precise actuation, compact chip size with low power consumption. 1-D MEMS scanners usually applied for optical communication devices such as WSS, VOA, N x M switch, and tunable laser.


USER GUIDE

USER GUIDE

PRODUCT DETAILS

PRODUCT DESCRIPTION SPECIFICATION DRAWING

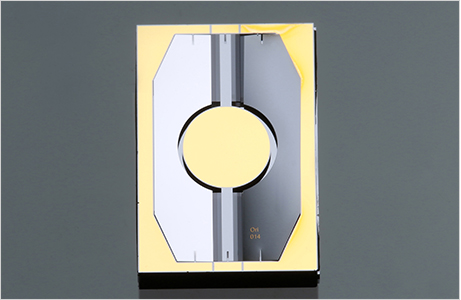

C1-C1208 1D MEMS Scanner, Quasi-static Mode
Chip Size : 12mm x 8mm, Mirror Size : Dia. 4mm,
Packaging Type : Die, COB
Cx-uC3218 1D MEMS Scanner, Quasi-static Mode
Chip Size : 3.2mm x 1.8mm, Mirror Size : Dia. 0.6mm,
Packaging Type : Die, TO-CAP, COB
S1-AP025 1D MEMS Scanner Array, Quasi-static Mode
Chip Size : 10mm x 10mm, Mirror Size : 0.29mm x 0.6mm
# of Mirror : 26, Mirror Pitch : 0.3mm
Packaging Type : Die, COB

PRODUCT

C1-C1208

DESCRIPTION

1D MEMS Scanner, Quasi-static Mode
Chip Size : 12mm x 8mm, Mirror Size : Dia. 4mm,
Packaging Type : Die, COB

DRAWING

PRODUCT

Cx-uC3218

DESCRIPTION

1D MEMS Scanner, Quasi-static Mode
Chip Size : 3.2mm x 1.8mm, Mirror Size : Dia. 0.6mm,
Packaging Type : Die, TO-CAP, COB

DRAWING

PRODUCT

S1-AP025

DESCRIPTION

1D MEMS Scanner Array, Quasi-static Mode
Chip Size : 10mm x 10mm, Mirror Size : 0.29mm x 0.6mm
# of Mirror : 26, Mirror Pitch : 0.3mm
Packaging Type : Die, COB

DRAWING

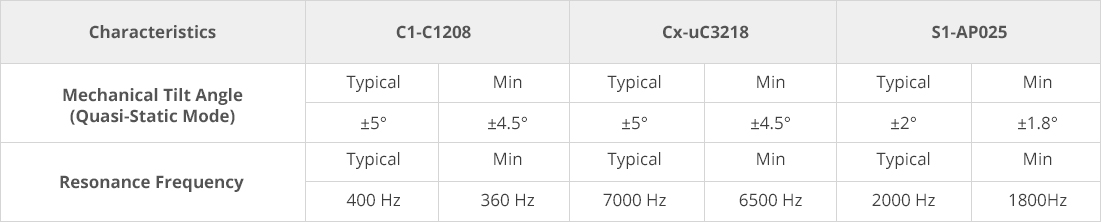

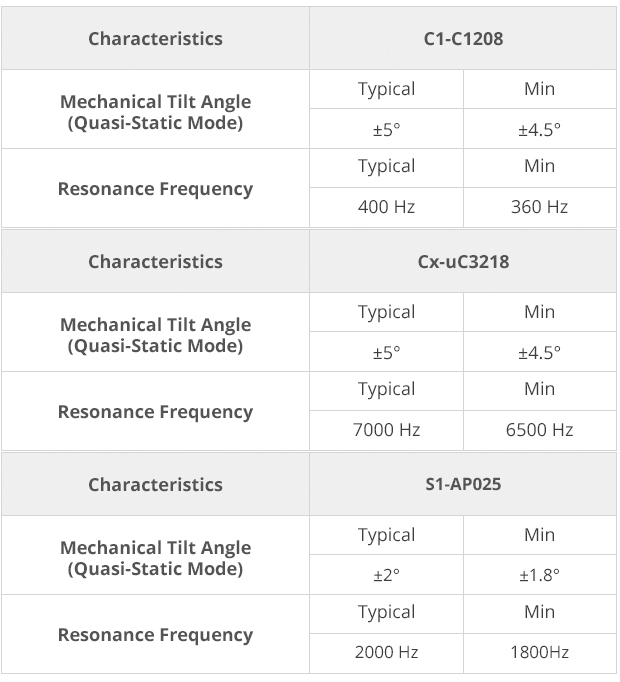

SPECIFICATION

2 AXIS TYPE

A MEMS Scanner is an optical device used to direct incident light in a desired direction. A KOC¡¯s 2-D MEMS scanner can scan a 2D plane using reflected light. KOC¡¯s 2-D MEMS scanners can be applied for various cutting-edge technologies such as OCT, pico-projector, smart headlight, LiDAR, and skincare machine.


USER GUIDE

USER GUIDE

PRODUCT DETAILS

PRODUCT DESCRIPTION SPECIFICATION DRAWING
A1-C0505 2D MEMS Scanner
X-axis : Resonance Mode, Y-axis : Quasi-static Mode
Chip Size : 5mm x 5mm, Mirror Size : Dia. 1mm,
Packaging Type : Die, COB
A1-C0808 2D MEMS Scanner
X-axis : Resonance Mode, Y-axis : Quasi-static Mode
Chip Size : 8mm x 8mm, Mirror Size : Ellipse. 2.3mm x 3mm
Packaging Type : Die, PLCC
B1-C0808 2D MEMS Scanner
X & Y-axis : Quasi-static Mode
Chip Size : 8mm x 8mm, Mirror Size : Dia. 2mm,
Packaging Type : Die, PLCC
B2-C1010 2D MEMS Scanner
X & Y-axis : Quasi-static Mode
Chip Size : 10mm x 10mm, Mirror Size : Dia. 2mm,
Packaging Type : Die, COB

PRODUCT

A1-C0505

DESCRIPTION

2D MEMS Scanner
X-axis : Resonance Mode, Y-axis : Quasi-static Mode
Chip Size : 5mm x 5mm, Mirror Size : Dia. 1mm,
Packaging Type : Die, COB

DRAWING

PRODUCT

A1-C0808

DESCRIPTION

2D MEMS Scanner
X-axis : Resonance Mode, Y-axis : Quasi-static Mode
Chip Size : 8mm x 8mm, Mirror Size : Ellipse. 2.3mm x 3mm
Packaging Type : Die, PLCC

DRAWING

PRODUCT

B1-C0808

DESCRIPTION

2D MEMS Scanner
X & Y-axis : Quasi-static Mode
Chip Size : 8mm x 8mm, Mirror Size : Dia. 2mm,
Packaging Type : Die, PLCC

DRAWING

PRODUCT

B2-C1010

DESCRIPTION

2D MEMS Scanner
X & Y-axis : Quasi-static Mode
Chip Size : 10mm x 10mm, Mirror Size : Dia. 2mm,
Packaging Type : Die, COB

DRAWING

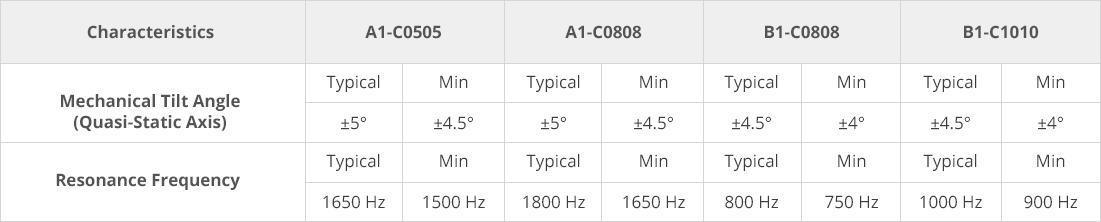

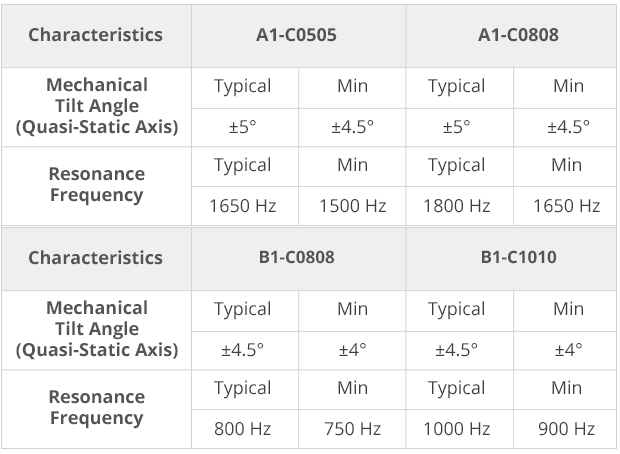

SPECIFICATION
